* VAT(부가세) 포함가격입니다.

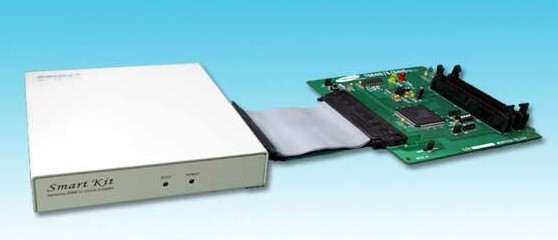

* Note: SK-1200 package 는 Universal Socket Adapter 및 SAMSUNG
Target board를 포함하고 있지 않으니 별도 요청 바랍니다.
>> Hardware Specification
* Full capacity emulation memory, SAM8 : 64K byte
* 16K (16 bits wide) depth of real-time trace memory
* USB or RS232C interface with PC host system
* Programmable VDD voltage of Target CPU - Supply voltage to
Target board: 3.0~5.0V
* Real time emulation with processor full speed
- SAM8 : 25MHz (SAM8 full speed: 25Mhz)
>> Emulation Features
* Download/Upload and emulation memory editing function
* Run/Stop, Reset, Go to cursor, Go to address, Breakpoint run
* Program execution skip
- Skip to cursor, Skip to specific address
- Step over subroutine calls
* All registers can be displayed and modified by user
* Single-step execution
- As the user single-step execution, all updated information
is highlighted for easy reference
- Execution by single step
- Continuous single-step execution
- Up to 255 countable single-step executions Program memory
(ROM) address breakpoint
- Unlimited breakpoint can be set
- Up to 255 countable breakpoints can be set for an
instruction
- Continuous breakpoint
* Program memory(ROM) address breakpoint
- Unlimited breakpoint can be set
- Up to 255 countable breakpoint can be set for an instruction
- Continuous breakpoint Timer/Counter function
- Execution time measurement between program sequence (
Interval time between program steps )
- Number of instruction fetch (program code size) counter
- Number of instruction execution counter
* Real-time trace run
- 16K depth of real-time trace memory records program flow
from address trigger point.
* Program run history view
- 16K depth of real-time run history can be viewed whenever
program execution is halted
* OTP/MTP(Flash) Programming function
- Read, Program, Blank check, Verify, Read protection, and
Checksum available for all SAM8 OTP/MTP/FLASH family
- Erase, LDC protection, and Hard Lock functions are
available for MTP devices
- Complete line of interchangeable adapter socket supports
all package options (sold separately)
* All functions of emulation are possible in the sub-clock mode
operation and also Full flash MCU (debugging by full flash
mode)
* Programmable Clock frequency of Target MCU
- User can change the clock frequency of the target MCU by
software in Smart Studio or IAR-C debugger.
* RAM data breakpoint run
- Read, Write, Read/Write condition
- Continuous RAM data breakpoint run
* Real-time RAM(Register) display
- Sampling rate : 100ms
- Support IAR C- compiler/embedded Workbench IDE
* IAR C-compiler support
- IAR embedded Workbench IDE
- IAR SAM8 C-compiler
|
|
