The best choice for mobile phone development

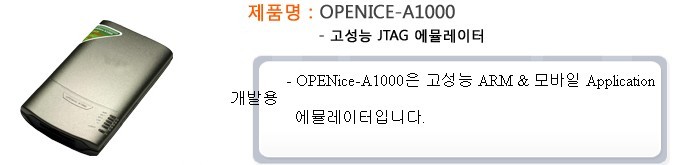

OPENice-A1000 is a high performance JTAG emulator for ARM core-based(ARM7/9/10/11/Xscale) products, and it also supports a variety of processors; ARM11, QUALCOMM, TI, Agere, Skyworks, etc for mobile development.

>>Feature

▣ Supports variety processors for mobile
- QUALCOMM : MSM 3/5/6/7 series
- TI : OMAP devices
- Agere devices
- Intel Bulverde devices
- SkyWorks chips

▣ Supports Variety processors for ARM
- ARM7, ARM9, ARM10, ARM 11 & Xscale

▣ Supports Multi-core / Multi-processor
- Multi-core&Multi-processor support sithout core-module change

▣ Super High speed downloading(USB 2.0)
- High-speed image download on the target system through USB 2.0

▣ Convenient and easy flash programming
- Supporting various drivers of flash memories for debugging

▣ Supports Stand Alone Flash Programming
- Easy downloading of images on the target flash memory in mobile phone without connecting PC using flash memories in OPENice-A1000

▣ Supports ETM Trace(Optional)

▣ Provides a free debugging software "SPIDER"
- SPIDER, specialized debugging S/W for OPENice series, is provided with OPENice-A1000

▣ Supports USB power
- Two choices for power supply, USB or adapter

▣ Compact Size
- Very convenient to carry due to small size : 78mm(W)×130mm(L)×20mm(H)

▣ Supports frees education for OPENice series user
- AIJI system run Embedded system Education center, and user education courses for OPENice-A1000 and SPIDER are offered every month.

▣ Technical support
- Offers customer-tailored service and A/S. Always ready to respond for customer's requests.


>>Specification

▣ Supportable Mobile processor
- QUALCOMM : MSM 3/5/6/7 series
- TI : OMAP devices
- Skyworkds, Agere devices
- See the table in page 8 for more information

▣ Supportable ARM processor
- ARM7,ARM9,ARM10,ARM11 & Xscale

▣ Interface
- USB2.0

▣ Target connection
- 20/14Ppin JTAG

▣ Power
- USB or DC5V(SMPS)

▣ Supporting Debugger
- Spider
- IAR EWARM, ARM ADW(SDT)/AXD(ADS)
- Linux GDB, MS Platform Builder

▣ OS
- MS Windows 98 or over

▣ Firmware
- Upgrade by S/W

>> Supports Processors


ARM
ARM7TDMI, ARM7TDMI-S, ARM720T,ARM740T, ARM9TDMI, ARM920T, ARM922T, ARM925EJ-S, ARM940T, ARM946E-S, ARM966E-S, ARM1020, ARM1022, ARM1136F-AS, ARM1176JZ(F)-S

QUALCOMM
MSM3/5/6xxx series, MSM7xxx series
MSM3000, MSM3100, MSM3300, MSM5000, MSM5010, MSM5105, MSM5200, MSM5500, MSM6000, MSM6025, MSM6100, MSM6150, MSM6200, MSM6225, MSM6250, MSM6275, MSM6300, MSM6500, MSM6550, MSM6700

Samsung
S3C3xxx series, S3C4xxx series, S3C2xxx series, S3C5410, Scorpio, S5N8946/47

TI
OMAP-DM270, OMAP730, OMAP1510, OMAP1610, OMAP1611, OMAP1612, OMAP1710, OMAP710, OMAP732, OMAP2410/2420, Calypso

Intel
PXA210, PXA250, PXA255, PXA27x series, IXP425

Cirrus Logic
CS2xxx series, EP73xxx series, EP93xxx series

Motorola
i.MX1, i.MX21, i.MXL

Philips
LPC2xxx series, VMS7xxx series, VWS2xxx series

ST
STR710, STR711, STR712, STR720, STW2400

Alcatel
MTCxxx, MTKxxx series

Analog Device
AD20MSP430, AD6522, AD6526

ATMEL
AT91Cxxx series, EP75xxx series, EP76xxx series, AT78xxx series

Globespan Virata
HELIUM 100, HELIUM 200, HELIUM 210

Hynix
HMS30C7201, HMS30C7202, HMS30C7110, HMS39C7092

Micronas
CDC3xxx series, CEA3207A

NEC
UPD65977

NetSilicon
NET+15, NET+20, NET+40, NET+50, NS7520, NS9750, NS9775

OKI
ML67xxx series

Panasonic
MN1A7T0200

Sharp
LH75xxx series, LH79xxx series, LH7Axxx series

Triscend
TA7S05, TA7S12, TA7S20, TA7S32

Zarlink
MT1020A, MT92101
